Mechnical Joint K Type Ductile Iron Pipe

0.00
0.00

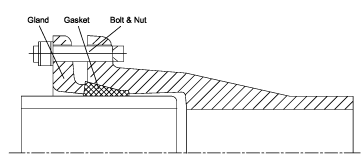

Description: The mechanical joint is a bolted joint utilizing a ductile iron gland and mechanical joint gasket. The mechanical joint is recommended for water service where many connections are required. All components of the mechanical joint are interchangeable. The spigot end of mechanical joint pipe has the same outside diameter as push-on joint pipe. As a result, it can be fitted into such joints in the field by beveling the outside edge. All of the accessories (glands and fasteners) are supplied with each joint.

Standards: ISO2531, EN545, EN598

Materials: Ductile iron

Nominal sizes: DN80—2000mm

Pressure: PN10/16/25/40

Corrosion protection: cement lining and zinc and bitumen coating.

Gaskets: EPDM, SBR, NBR

Package: wooden case with plastic layer, wooden pallets with plastic layer, steel crates.

FeaturesDuctile iron pipes is stronger and easier to tap, requires less support and provides greater flow area compared with pipes made from materials like PVC, concrete, polyethylene, or steel.



Weight of K-Type Joint Ductile Iron Pipes (K9 Class)

DN

Barrel

Socket Weight

Total Weight (kg)

mm

DE(mm)

e(mm)

Kg/m

kg

6m

1000

1048

13.5

309.3

146

2002

1200

1255

15.3

420.1

201

2722

1400

1462

17.1

547.2

265.8

3549

1600

1668

18.9

690.3

375.4

4517

1800

1875

20.7

850.1

490.6

5591

2000

2082

22.5

1026.3

626.4

6784

2200

2288

24.3

1218.3

784.2

8094

2400

2495

26.1

1427.2

966.2

9529

2600

2702

27.9

1652.4

1173.7

11088
