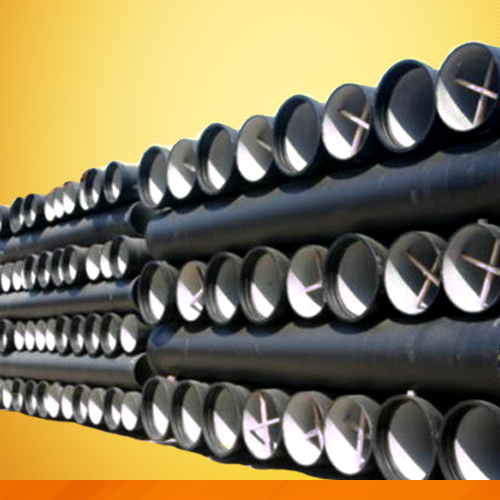

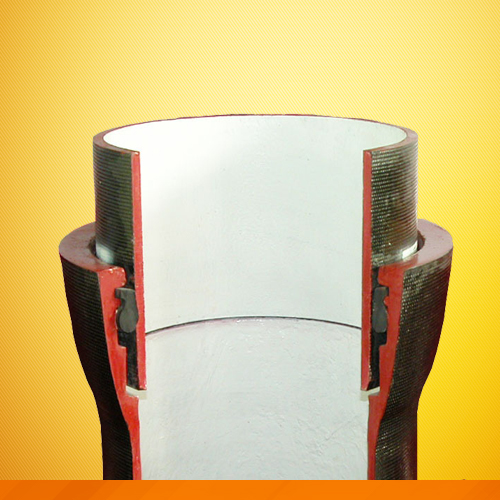

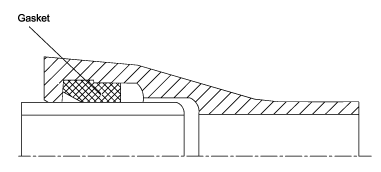

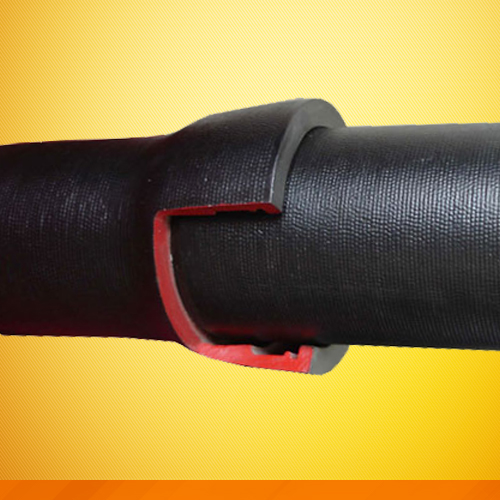

Push-on Joint T Type Ductile Iron Pipe

0.00
0.00


Description: Ductile cast iron, also called ductile iron, spheroidal graphite iron, or nodular cast iron, is a type of cast iron invented in 1943. While most varieties of cast iron are brittle, ductile cast iron is much more flexible and elastic, due to its nodular graphite inclusions. Much of the production of ductile iron is in the form of ductile cast iron pipe, used for water supply and sewerage design. Ductile iron pipe is stronger and easier to tap, requires less support and provides greater flow area compared with pipes made from other materials like PVC, concrete, polyethylene or steel.

Standards: ISO2531, EN545,EN598

Materials: Ductile iron

Nominal sizes: DN80—2000mm

Pressure: PN10/16/25/40

Corrosion protection: cement lining and zinc and bitumen coating.

Gaskets: EPDM, SBR, NBR

Package: wooden case with plastic layer, wooden pallets with plastic layer, steel crates.

Features

 Ductile Iron Pipe offers proven reliability and the quality. It is quick and easy installation. The ductile iron pipe has high pressure capability. Match 100% Natural rubber / SBR / EPDM rubber gaskets.


Weight of Ductile Iron Pipes with T-Type Joint (K9 Class)

DN

Barrel

Socket Weight

Total Weight (kg)

mm

DE(mm)

e(mm)

Kg/m

kg

6m

80

98

6.0

12.2

3.4

77

100

118

6.1

15.1

4.3

95

150

170

6.3

22.8

7.1

144

200

222

6.4

30.6

10.3

194

250

274

6.8

40.2

14.2

255

300

326

7.2

50.8

18.9

323

350

378

7.7

63.2

23.7

403

400

429

8.1

75.5

29.5

482

450

480

8.6

89.7

38.3

577

500

532

9

104.3

42.8

669

600

635

9.9

137.3

59.3

883

700

738

10.8

173.9

79.1

1123

800

842

11.7

215.2

102.6

1394

900

945

12.6

260.2

129.0

1691

1000

1048

13.5

309.3

161.3

2017

1100

1152

14.4

362.8

194.7

2372

1200

1255

15.3

420.1

237.7

2758

1400

1462

17.1

547.2

385.8

3669

1600

1668

18.9

690.3

375.4

4517

Note: K10,K12 ductile iron pipes can be produced to ISO2531 according to demand of users.
