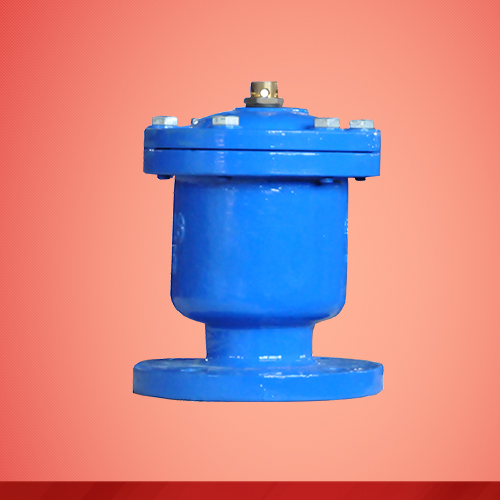

Single orifice air exhaust valve (P1(QB1))

0.00
0.00


Description: Single Chamber Air Valves are used to prevent pipeline burst, as a result of air intake/discharge failure in the start-up and shut-off of the system. Single Chamber Air Valves are designed to perform two functions, which are venting of large volumes of air on the start-up of the system, while pipelines are filled; and intake of large volumes of air on shut-off of the system, while pipelines are being drained.

Standards: GB/T 17241.6-1998.

Materials: Ductile iron, cast iron

Nominal sizes: DN80—300mm

Pressure: PN10/16

Corrosion protection: Inside and outside FBE.

Suitable medium: Water, oil, steam.

Package: wooden case with plastic layer, wooden pallets with plastic layer, steel crates.
