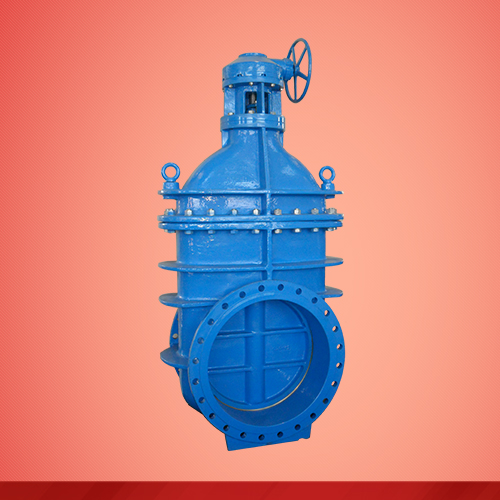

Non rising stem gear box gate valve (Z545T)


Description: The stem doesn't rise when opening the valve which is suitable for where the height is limited and there are a few parts in the gate and it is reliable. High reliability of strength and rigidity. The sealing is copper alloy which is wear resisting and has long life. when opening, no other parts in the way with low flow resisting coefficient. The installation direction is various with the same performance.


  Design: BS5150, GB.

  Face to Face: DIN3202 F4/5, GB12221.

  Flange: BS EN 1092-2.

Materials: Ductile iron, cast iron.

Nominal sizes: DN80—1600mm

Pressure: PN10/16/25

Corrosion protection: Inside and outside FBE.

Suitable medium: Water, oil, steam.

Package: wooden case with plastic layer, wooden pallets with plastic layer, steel crates.
