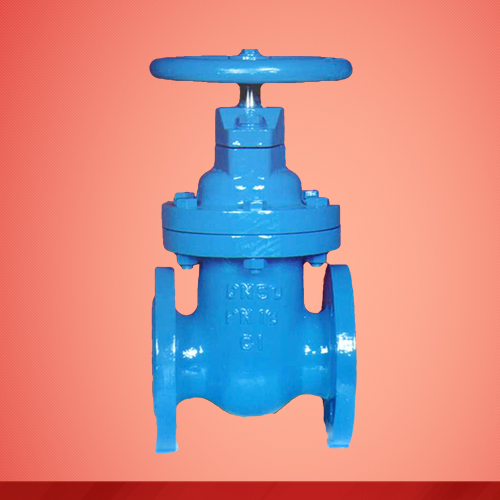

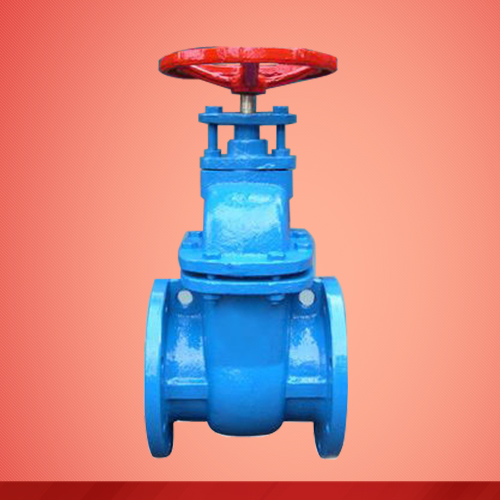

Non-rising stem gate valve (Z45T)

0.00
0.00


Description: Non-rising stem gate valve is used where vertical space is limited or underground. The stem is threaded into the gate. As the hand wheel on the stem is rotated, the gate travels up or down the stem on the threads while the stem remains vertically stationary. This type of valve has a pointer indicator threaded onto the upper end of the stem to indicate the position of the gate.

Standards:

  Design: BS5163, BS5150, DIN3352, GB.

  Face to Face: BS EN 558-1 series 3/14, DIN3202 F4/5, GB12221.

  Flange: BS EN 1092-2.

Materials: Ductile iron, cast iron.

Nominal sizes: DN80—600mm

Pressure: PN10/16/25

Corrosion protection: Inside and outside FBE.

Suitable medium: Water, oil, steam.

Package: wooden case with plastic layer, wooden pallets with plastic layer, steel crates.

Features

  Non-rising stem and inside stem screwl

  Flexible wedge, fully guided

  Metal seat and resilient seat available

  Renewable seat ring and stem backseat

  Manual operation standard, gear operator and actuation available

  Flange end: raised face or ring type joint
