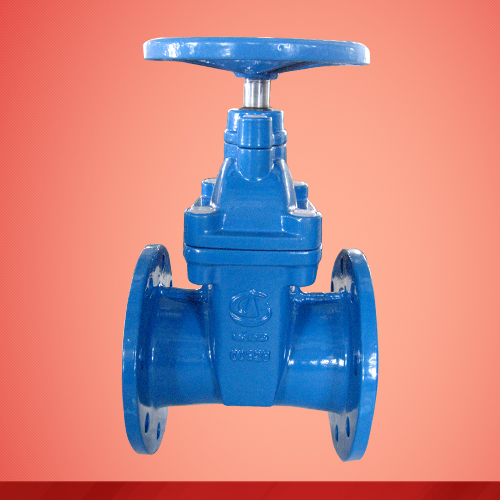

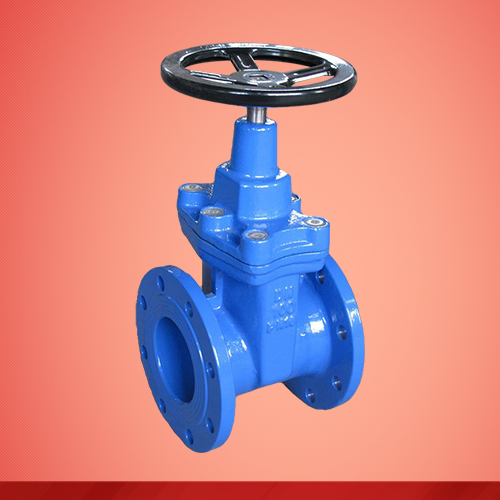

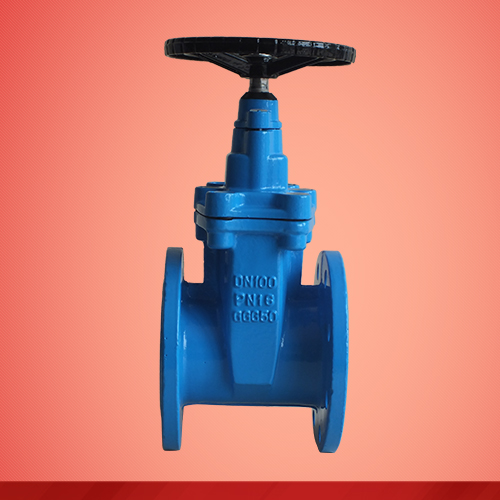

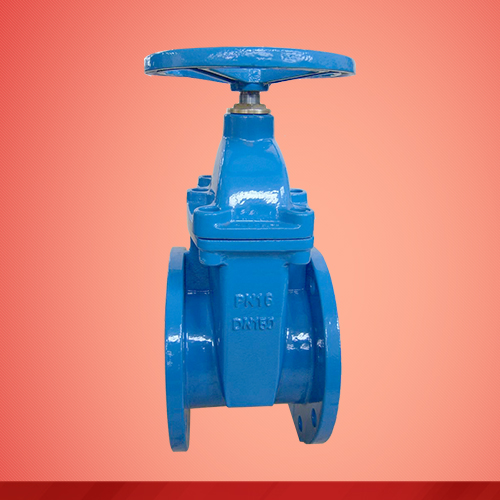

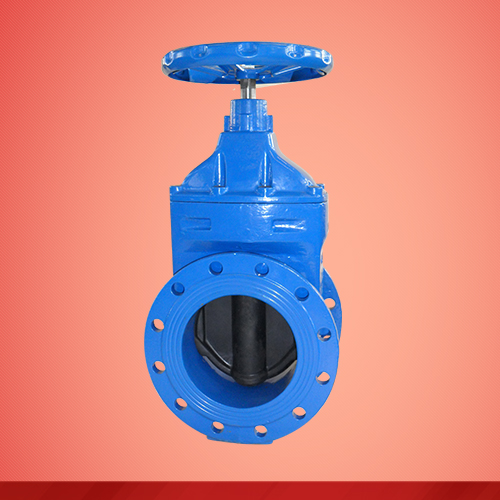

Resilient seat non-rising stem gate valve (Z45X)


Description: The valve disc is rubber-packed to get excellent sealing effect by the rubber’s resilient deformation. Non-rising resilient seated gate valve solves the problem in general gate valve such as leakage, rusting etc. and saves installation space. It is widely used in tap water industry, sewage treatment, shipping, construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system’s pipeline to adjust and shut off fluid.


  Design: BS5163, DIN3352, GB.

  Face to Face: BS EN 558-1 series 3/14, DIN3202 F4/5, GB12221.

  Flange: BS EN 1092-2.

Materials: Ductile iron, cast iron.

Nominal sizes: DN80—600mm

Pressure: PN10/16/25

Corrosion protection: Inside and outside FBE.

Suitable medium: Water, oil, steam.

Package: wooden case with plastic layer, wooden pallets with plastic layer, steel crates.
