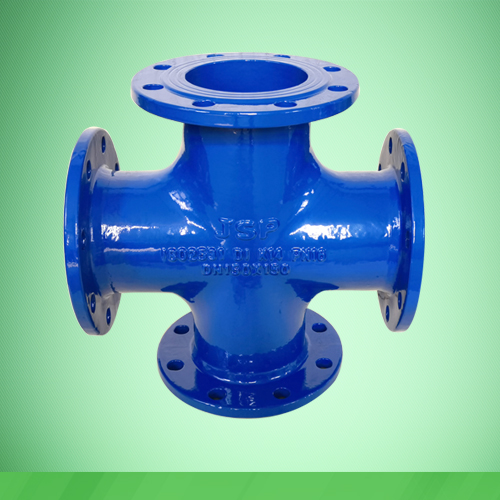

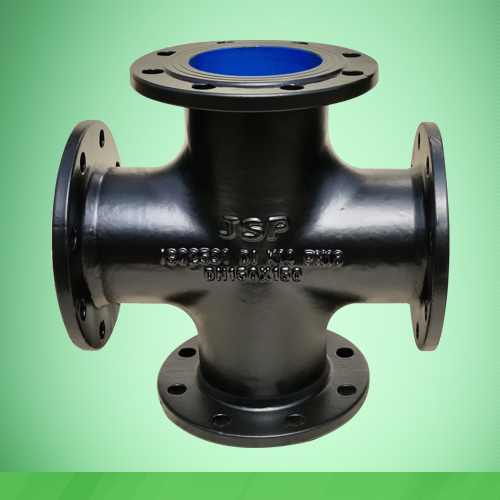

All flanged cross

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.



Dimensions:

DN × dn

T

t

L

H

80× 80

8.1

8.1

330

165

100×100

8.4

8.4

360

180

150×150

9.1

9.1

440

220

200×200

9.8

9.8

520

260

250×250

10.5

10.5

700

350

300×300

11.2

11.2

800

400

350×350

11.9

11.9

850

425

400×400

12.6

12.6

900

450

450×450

13.3

13.3

950

475

500×500

14.0

14.0

1000

500

600×600

15.4

15.4

1100

550
