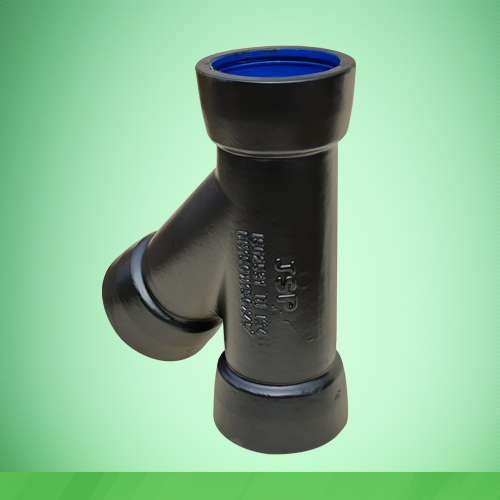

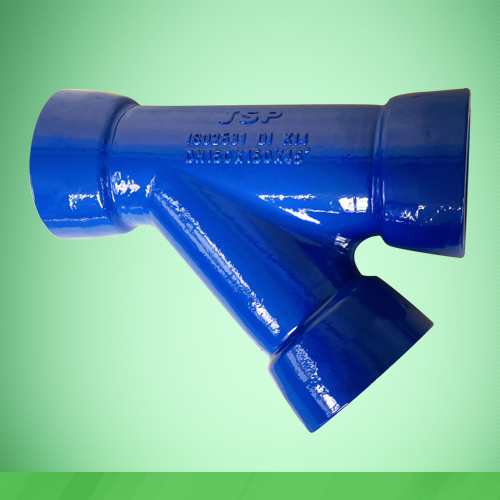

All socket tee with 45º angle branch

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.



Dimensions:

DN

T

t

L

K

80

8.1

8.1

500

375

100

8.4

8.4

540

405

150

9.1

9.1

640

480

200

9.8

9.8

735

560

250

10.5

10.5

830

640

300

11.2

11.2

930

715

350

11.9

11.9

880

790

400

12.6

12.6

970

870

450

13.3

13.3

1060

950

500

14.0

14.0

1140

1025

600

15.4

15.4

1310

1180
