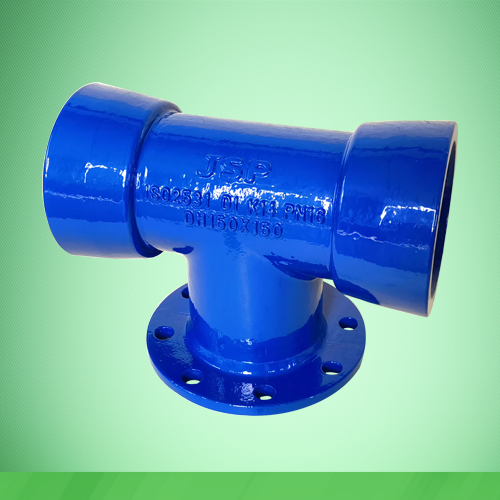

Double socket tee with flanged branch

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.

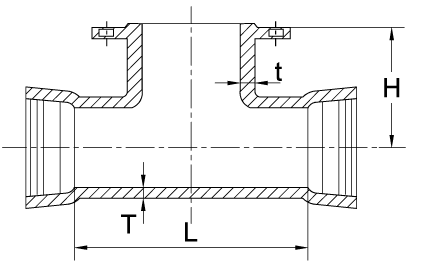

Dimensions:

DN×dn

L

H

T

t

80×80

170

165

7.0

7.0

100×80

170

175

7.2

7.0

100×100

190

180

7.2

7.2

150×80

170

205

7.8

7.0

150×100

195

210

7.8

7.2

150×150

255

220

7.8

7.8

200×80

175

235

8.4

7.0

200×100

200

240

8.4

7.2

200×150

255

250

8.4

7.8

200×200

315

260

8.4

8.4

250×80

200

270

9.0

7.0

250×100

200

270

9.0

7.2

250×150

255

280

9.0

7.8

250×200

315

290

9.0

8.4

250×250

375

300

9.0

9.0

300×100

205

300

9.6

7.2

300×150

260

310

9.6

7.8

300×200

320

320

9.6

8.4

300×250

375

330

9.6

9.0

300×300

435

340

9.6

9.6

350×100

205

330

10.2

7.2

350×150

260

340

10.2

7.8

350×200

325

350

10.2

8.4

350×250

375

360

10.2

9.0

350×300

435

370

10.2

9.6

350×350

495

380

10.2

10.2

400×100

210

360

10.8

7.2

400×150

265

370

10.8

7.8

400×200

325

380

10.8

8.4

400×250

375

390

10.8

9.0
