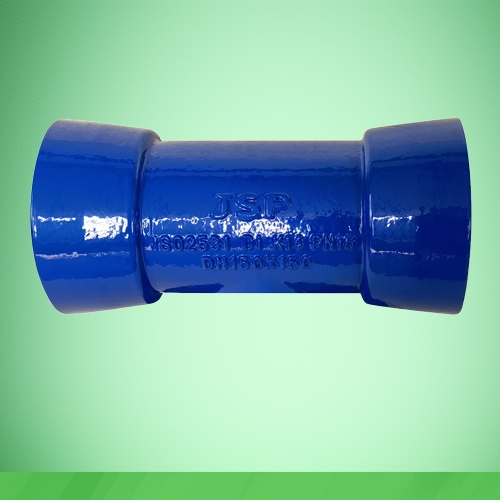

Collar

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.



Dimensions:

DN

d

L

80

109

160

100

130

160

150

183

165

200

235

170

250

288

175

300

340

180

350

393

185

400

445

190

450

498

195

500

550

200

600

655

210

700

760

220

800

865

230

900

970

240

1000

1075

250

1200

1285

270

1400

1492

340

1600

1699

360

1800

1906

380

2000

2133

400

2200

2320

420

2400

2527

440

2600

2734

460
