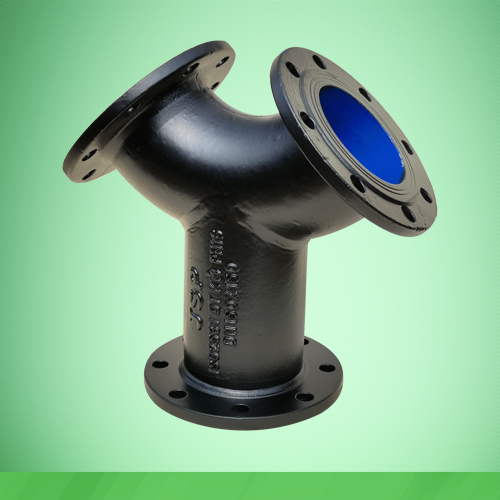

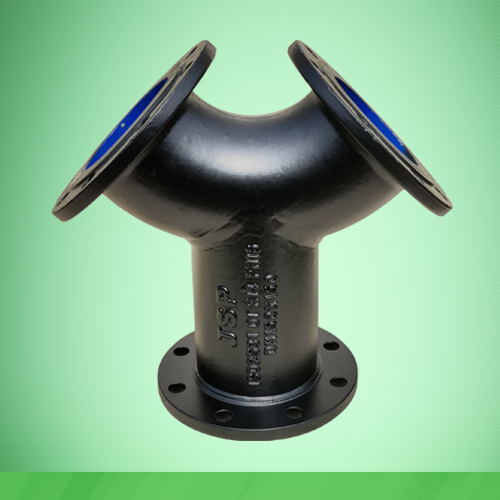

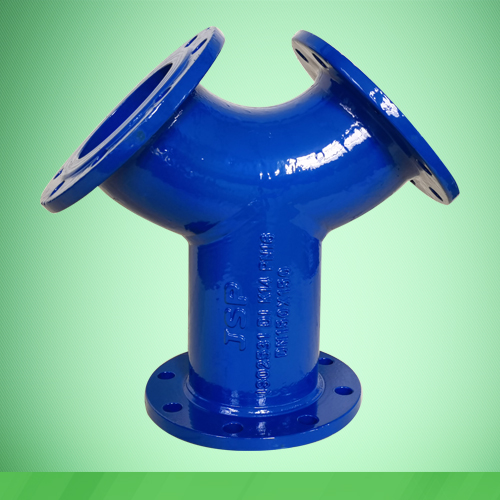

All flanged Y tee

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.



Dimensions:

DN×dn

T

A

80×80×80

8.1

165

100×100×100

8.4

180

150×150×150

9.1

220

200×200×200

9.8

260

250×250×250

10.5

350

300×300×300

11.2

400

350×350×350

11.9

450

400×400×400

12.6

500

450×450×450

13.3

550

500×500×500

14.0

600

600×600×600

15.4

700
