Double flanged 45° bend

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.

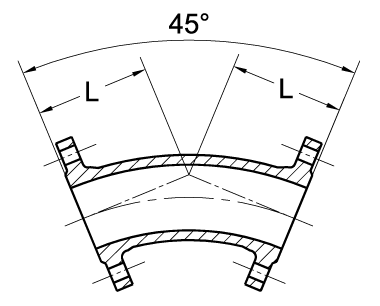

Dimensions:

DN

L

80

130

100

140

150

160

200

180

250

350

300

400

350

300

400

325

450

350

500

375

600

425

700

480

800

530

900

580

1000

630

1200

750

1400

775

1600

845

1800

910

2000

980

2200

880

2400

945

2600

1005
