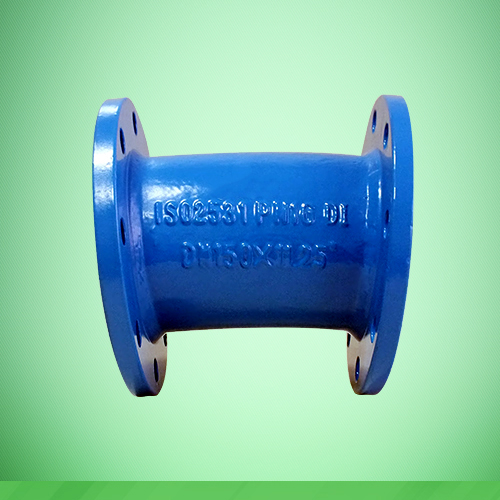

Double flanged 11.25° Bend

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.



Dimensions:

DN

L

80

130

100

140

150

160

200

180

250

350

300

400

350

298

400

324

450

349

500

375

600

426

700

478

800

529

900

581

1000

632

1200

735

1400

835

1600

940

1800

345

2000

375

2200

405

2400

435

2600

465
