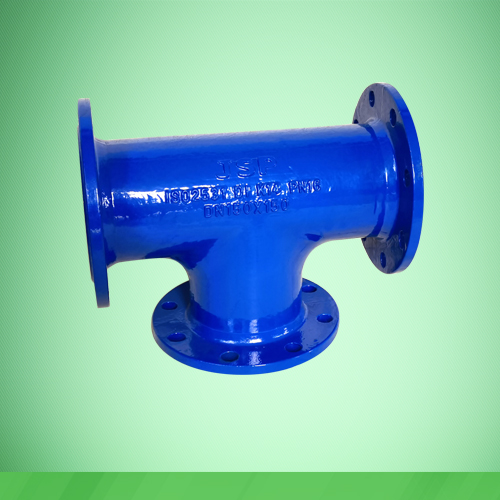

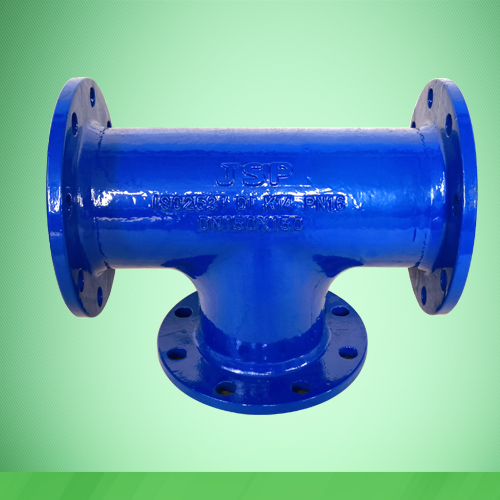

All flanged tee

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.



Dimensions:

DN×dn

L

H

T

t

80×80

330

165

7.0

7.0

100×80

360

175

7.2

7.0

100×100

360

180

7.2

7.2

150×80

440

205

7.8

7.0

150×100

440

210

7.8

7.2

150×150

440

220

7.8

7.8

200×80

520

235

8.4

7.0

200×100

520

240

8.4

7.2

200×150

520

250

8.4

7.8

200×200

520

260

8.4

8.4

250×80

700

270

9.0

7.0

250×100

700

275

9.0

7.2

250×150

700

300

9.0

7.8

250×200

700

325

9.0

8.4

250×250

700

350

9.0

9.0

300×100

800

300

9.6

7.2

300×150

800

325

9.6

7.8

300×200

800

350

9.6

8.4

300×250

800

375

9.6

9.0

300×300

800

400

9.6

9.6

350×100

850

325

10.2

7.2

350×150

850

325

10.2

7.8

350×200

850

325

10.2

8.4

350×250

850

325

10.2

9.0

350×300

850

425

10.2

9.6

350×350

850

425

10.2

10.2

400×100

900

350

10.8

7.2

400×150

900

350

10.8

7.8

400×200

900

350

10.8

8.4

400×250

900

350

10.8

9.0

400×300

900

450

10.8

9.6
