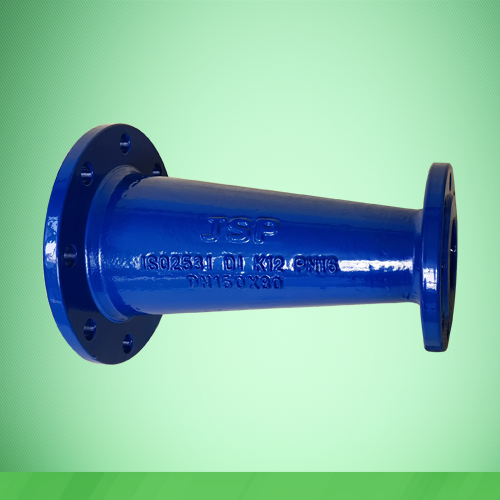

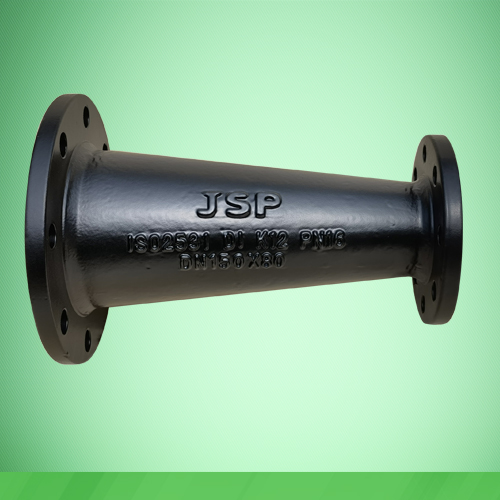

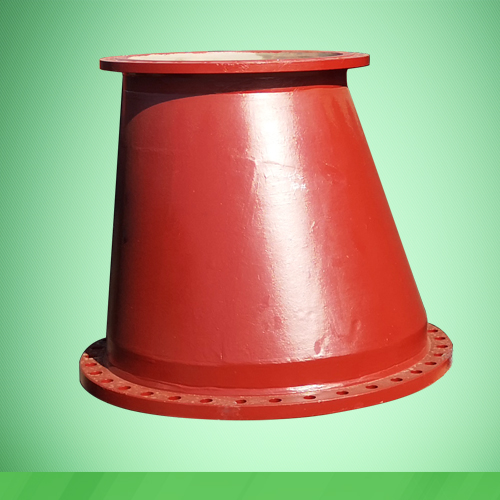

Double flanged taper

0.00
0.00

● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.

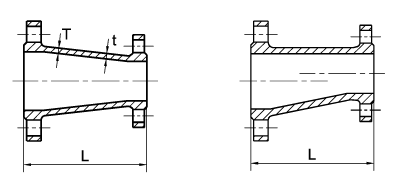

Dimensions:

DN × dn

T

t

L

100 × 80

7.2

7.0

200

150 × 80

7.8

7.0

400

150 × 100

7.8

7.2

300

200 × 100

8.4

7.2

600

200 × 150

8.4

7.8

300

250× 150

9.0

7.8

600

250 × 200

9.0

8.4

300

300 × 100

9.6

7.2

700

300× 150

9.6

7.8

650

300 × 200

9.6

8.4

600

300 × 250

9.6

9.0

300

350 × 200

10.2

8.4

650

350 × 250

10.2

9.0

600

350 × 300

10.2

9.6

300

400 × 200

10.8

8.4

700

400 × 250

10.8

9.0

650

400 × 300

10.8

9.6

600

400 × 350

10.8

10.2

300

450 × 250

11.4

9.0

700

450 × 300

11.4

9.6

650

450 × 350

11.4

10.2

600

450 × 400

11.4

10.8

300

500 × 300

12.0

9.6

700

500 × 350

12.0

10.2

650

500 × 400

12.0

10.8

600

500 × 450

12.0

11.7

300

600 × 350

13.2

10.2

750

600 × 400

13.2

10.8

700

600 × 450

13.2

11.4

650
